Today’s information environment is defined by a strange inversion: Instead of inhabiting a shared reality from which a variety of knowledge objects emerge, we inhabit a variety of realities that each emerge from a particular collection of knowledge objects their inhabitants hold in common. In order to collaborate, distinct actors must first establish sufficient common knowledge to construct the shared reality within and upon which they will work.
BlockScience’s ongoing research into Knowledge Organization Infrastructure (KOI) – part of a collaborative initiative conducted in partnership with the non-profit Metagov and the Royal Melbourne Institute of Technology – is intended to facilitate this process, and today we are excited to announce the public beta release of our new KOI-net protocol. This beta release and accompanying demo are meant to familiarize interested parties with the structure and function of the protocol, so that they can begin experimenting with the affordances it offers prior to its full release later this summer.
The KOI-net protocol is rooted in the latest version of our existing Reference Identifier (RID) protocol, which identifies digital objects in terms of the “means of reference” that relates a “reference” (the RID) to a “referent” (some underlying object or resource). RIDs are similar to Uniform Resource Identifiers (URIs), but are not intended to have universal agreement or a centralized management structure. However, RIDs are compatible with URIs in that all URIs can be valid RIDs.
The RID protocol was designed to enable distinct actors to construct a set of shared references (and thus a common frame of reference) without needing to share the referents themselves. In other words, RIDs make it possible for organizations to communicate knowledge from or about proprietary resources and other objects, while preserving ownership of – and access control over – materials that they may be unwilling or unable to share.
The KOI-net protocol builds on the RID protocol to define standard communication patterns and coordination norms for establishing and maintaining KOI networks: heterogeneous compositions of KOI “nodes” which can autonomously input, process, and output knowledge, both independently and when wired together. The protocol only governs communication between nodes, allowing extensive variability in the behavior of each node and the configuration of each network. KOI networks can have a fractal-like structure, insofar as a given KOI-net can also function as a single node in a larger KOI-net (if it is viewed from an external perspective). These characteristics enable the protocol to serve as a flexible and interoperable foundation for future projects.
KOI-net allows nodes to communicate with one another according to one of two methods: event communication and state communication. Event communication is one-way – a node sends an “event” to another node – while state communication is two-way, with one node requesting RIDs, manifests, or bundles from another node, and receiving a response that contains the requested resource, if it is available. RIDs, manifests, and bundles are defined by the RID protocol, while events are defined by the KOI-net protocol.
An event is a signalling construct that conveys information about RID objects between networked nodes: A node emits an event to indicate that its internal state has changed. Events are composed of an RID, manifest, or bundle with one of three “FUN” event types attached; “New” means that the node has cached a previously-unknown RID, “Update” means that the node has cached a change to a previously-known RID, and “Forget” means that the node has deleted a previously-known RID from its cache. Nodes can broadcast events to other nodes in a particular KOI-net, but can also listen to events from other nodes – and can decide to change their own internal state, take some other action, or do nothing in response.

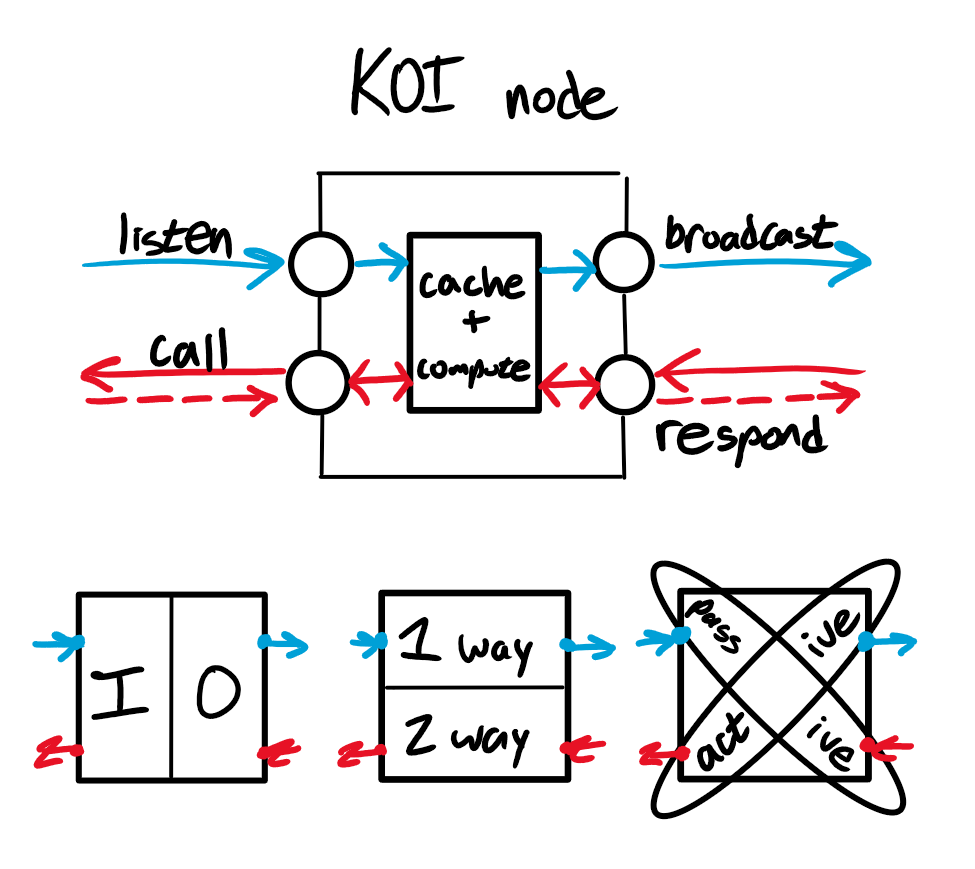

KOI-net also identifies nodes according to two basic types: “Full” nodes implement the API endpoints defined in the KOI-net protocol. They are capable of receiving events via webhooks (another node calls their endpoint), and serving state queries. Full nodes can also call the endpoints of other full nodes to broadcast events or retrieve state. “Partial” nodes, meanwhile, do not implement any API endpoints. They are capable of receiving events via polling (asking another node for events), and can also call the endpoints of full nodes to broadcast events or retrieve state.
Each KOI node can be viewed as dependent only on the KOI-net and RID protocols; thus, we designed a basic koi-net-node template repository intended as boilerplate for setting up new full node implementations with extensive flexibility. It is simply too early to predict what sorts of nodes users will build, or what kinds of patterns these nodes might fit – but we do anticipate that certain categories of nodes will emerge over time. Nodes might be classified, for example, in terms of their positioning relative to the boundaries of the organization that operates them. “Sensor” nodes, under such an understanding, would be those that take inputs from outside the boundaries of the organization that operates them (i.e. from the world, or from a node operated by another organization) and pass outputs to other nodes within an organization’s KOI-net. “Actuator” nodes would act in reverse, taking internal inputs and passing outputs to some location or service beyond their operators’ organizational boundaries. “Processor” nodes, meanwhile, would operate solely within an organization’s boundary to take inputs from and pass outputs to other nodes.
The video below demonstrates deployment of the koi-net-demo-v1 repository, resulting in the self-assembly of a modular knowledge processing network implemented using the KOI-net protocol. The example network is composed of five nodes: a coordinator node for facilitating node discovery, two sensor nodes pulling data from GitHub and HackMD, and two processor nodes for transforming and storing that data. It includes a flexible orchestration layer for both local and Docker-based deployments, along with command-line tools for system management. This demonstration is the first of a series designed for educational purposes, and is not intended for production use.

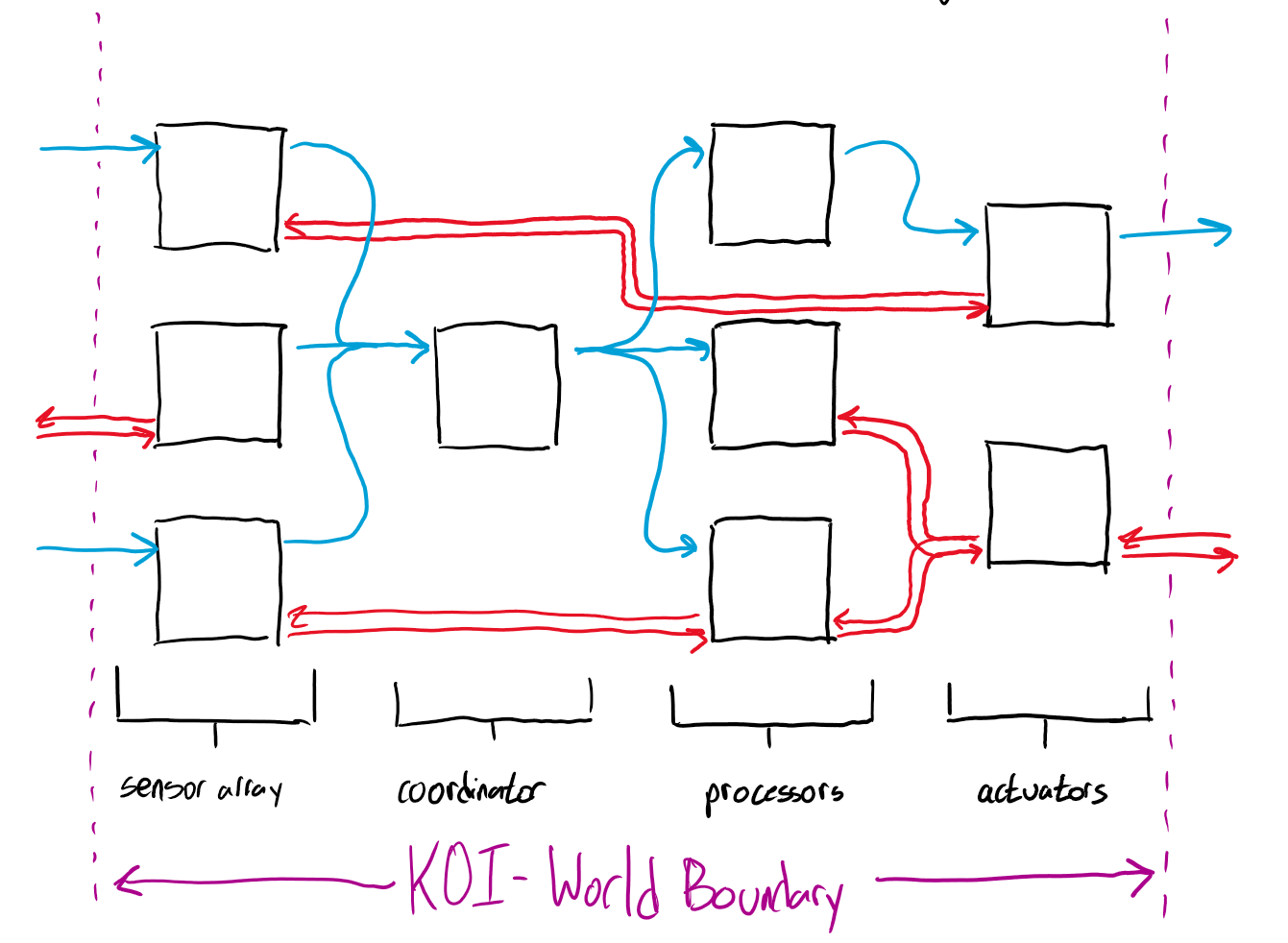

The architecture of the demo KOI-net can be seen below:
Deployment of the demo repository begins with orchestration, as users interact with setup tools to deploy demonstration nodes. At runtime, the coordinator node manages node discovery and registration, the sensor nodes collect data from GitHub and HackMD APIs, and the processor nodes transform and store that data for analysis, all following the KOI-net protocol and communicating using RID exchange.
The data flow through this demo KOI-net has seven stages:
- Collection: Sensor nodes fetch external data from GitHub and HackMD
- Discovery: Sensors register with the Coordinator for system-wide visibility
- Exchange: RIDs facilitate standardized event communication
- Processing: Data moves through event handlers to services
- Storage: Processed data is indexed in structured databases
- Access: CLI and REST interfaces provide query capabilities
- Monitoring: Continuous updates create a live processing stream
The demo features automated repository cloning and setup (after an initial manual cloning of the koi-net-demo-v1 repository itself), dynamic configuration generation, a centralized command-line interface for system management, and decoupled nodes communicating via a coordinator – highlighting the event-driven communication patterns, distributed data processing workflows, automated deployment and configuration generation, and application of microservice architecture principles to networks with decoupled components enabled by the KOI-net protocol.
This first demonstration is simple by design – intended only to familiarize users with the KOI-net protocol’s underlying structure and mechanics, and provide a first look at how it can be used to generate context-specific bespoke networks while ensuring that privileged information remains privileged. Nonetheless, it should make it easy to imagine the kind of further applications that the new protocol makes possible – especially when combined with AI-related tools, such as Anthropic’s Model Context Protocol (MCP) and/or Google’s Agent-to-Agent (A2A) protocol, which the KOI-net protocol is capable of supporting but does not require.
MCP standardizes how models receive context and invoke external functionality, eliminating the need for custom integrations for each data source. A KOI-net could include an “MCP adapter” node that unifies the network’s datastreams into a searchable registry and facilitates LLM integration; the KOI-net resulting from the demo repository, for example, could easily be plugged into an MCP server that can access information from the sensors and is connected to an LLM interface, which would enable the network to answer questions about whether a particular github repository adheres to the specifications and requirements put forth by a particular HackMD. A2A, on the other hand, uses a task-based model with capability discovery, asynchronous management, and standardized message formats to allow agents to work together seamlessly, regardless of their underlying implementation – and could thus be used to enable a KOI-net to present a controlled interface to “outside” systems. Together, the two additional protocols can form a powerful combination: MCP connects KOI nodes to non-KOI data/tools within a particular KOI-net’s boundaries, while A2A enables secure, standardized communication across those boundaries.
Integration with MCP and A2A will be explored further in subsequent demos.
